GLS36502

36" Stainless Steel Tri-Ring Gas Cooktop Series | GLS36502

★★★★☆

44 reviews 92% recommend

  • Ignites quickly with flame failure detection
  • Adjusts for precise control and even heat
  • Maximizes space with edge-to-edge grates
  • Features sealed burners for easy maintenance
$1,299.00 USD
$1,499.00 USD $1,299.00 USD
13% OFF
Shipping calculated at checkout.
Size

Why you'll love it

FOTILE’s Tri-Ring Gas Cooktop provides easy, fast ignition, versatile functions, and precise controls to make cooking enjoyable and convenient. Whether you’re cooking for one or a crowd, our 5-burner gas cooktop with a Tri-Ring Burner has the features you need to make everything from a simple breakfast to a multi-course feast.

*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

Specifications

Burners: 5, including a central tri-ring burner.
Heat Range: 2,500 to 22,000 BTUs.
Safety: Auto gas shutoff if flame goes out.
Grates: Heavy-duty cast iron, continuous for easy pot movement.
Size: 30" wide (fits standard cutouts).
Material: Stainless steel.
Controls: Front knobs for precise heat control.

What's Included

Cooktop
Cast Iron Grates
Wok Support Ring
Installation Kit
Propane (LP) Conversion Kit
User Manual
Installation Manual
Warranty Card

Why you'll love it

FOTILE’s Tri-Ring Gas Cooktop provides easy, fast ignition, versatile functions, and precise controls to make cooking enjoyable and convenient. Whether you’re cooking for one or a crowd, our 5-burner gas cooktop with a Tri-Ring Burner has the features you need to make everything from a simple breakfast to a multi-course feast.

*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

  • Versatile Tri-Ring up to 22,000* BTU Center Burner

  • Flame Failure Detection Safety Device

  • Fast Ignition System

  • Total Number of Burners

  • Continuous Heavy-Duty Cast-Iron Grates

  • Included Wok Ring & Optional Griddle (for GLS30501 only)

Feature 01 / 04

Versatile Center Burner, Up to 22,000 BTU

The Tri-Ring Burner is exceptionally versatile, with three concentric burner rings capable of producing between 2,500 BTU to 22,000* BTU of heat. Ignite the smallest center ring for low heat dishes, or use the middle and outer rings to produce more heat. To adjust all three rings simultaneously, turn the knob counterclockwise. To turn each ring on or off, turn the knob clockwise. *GLS30501: 21,000 BTU *GLS36502: 22,000 BTU When used synchronously, the Tri-Ring Burner delivers heat more evenly than two-ring designs, helping to ensure your food is cooked evenly and completely. This precision temperature control is perfect for employing many different cooking techniques and preparing a variety of cuisines.

Edge to Edge Cooking Grates

Feature 02 / 04

Edge to Edge Cooking Grates

With the tri-ring burner, the cast iron cooking grates extend from edge to edge, maximizing the total cooking area. You’ll have no trouble finding space for pots and pans of all shapes and sizes, making cooking easier and more efficient. These continuous edge-to-edge grates also make cooking safer by enabling you to easily move hot, heavy pots from one burner to another. Cast iron is also strong and durable, providing you with a versatile cooktop that will last.

Feature 03 / 04

Edge to Edge Cooking Grates

We use Cast Iron cooking grates that run from edge to edge on the cooktop. This means, you will always have space to put small and large pots and pans no matter what size or shape they are. It also allows you to move a hot heavy pot easily and safely from one burner to another if you need to. Continuous edge to edge grates makes it easier to cook on your cooktop surface. Cast Iron grates also offer long lasting performance.

Feature 04 / 04

Easy to Clean

FOTILE’s Tri-Ring gas cooktop features sealed burners to prevent liquids from spilling into the burner box. The area around the burners is a single, smooth, solid surface with beveled inner edges, making it easy to wipe clean. The burner caps, cast iron cooking grate, and burner knobs are all removable. Simply hand wash them in soap and water and place them back on the cooktop when dry.

  • Seamless Mounting

    Seamless Mounting

    We designed this tri-ring burner with professional-grade stainless steel hardware and a low profile to integrate seamlessly into your countertop. Its classic lines will blend into any decor, from modern to traditional.

  • Flame Failure Detection

    Flame Failure Detection

    One of the Tri-Ring cooktop’s many safety features is flame failure detection. If your burner fails to ignite or the flame goes out, the Flame Failure Device cuts off the gas supply within 20 seconds, keeping your home and family safe.

  • Fast Ignition System

    Fast Ignition System

    To activate Tri-Ring Cooktop’s Fast Ignition System, simply press, turn, and release the knob. The flame will light in 3 seconds or less because, rather than cutting off power when the knob is released, the solenoid valve continues to feed energy to the ignition needle. This design increases ignition success rate and extends the life of the igniter inside each burner.

  • Simmer Burner

    Simmer Burner

    The dedicated simmer burner provides just 3,000 BTU of heat—the perfect amount for melting butter or coconut oil, warming chocolate sauce, or slowly reducing and thickening jam. The heat remains low, accurate, and consistent to help you flawlessly execute these and other delicate dishes.

  • Griddle Burners*

    Griddle Burners*

    This professional-grade cooktop’s two left burners deliver even, consistent heat to large griddle pans. Both gas burners produce 13,000 BTU of medium heat, ideal for preparing a variety of breakfast foods, grilled sandwiches, sautéd vegetables, fish filets, and steaks. *Compatible with Model GLS30501

  • Heating Efficiency

    Heating Efficiency

    The Tri-Ring burners and burner covers are also made of pure copper, which is not only beautiful but also durable and thermodynamically efficient. Copper conducts heat better than other common burner materials like aluminum-alloyed cast iron. In fact, this cooktop heats so efficiently that it can save you 77 hours each year when cooking for a family of three.

Specifications & Product Details

Gas Type
NG/LPG
Heating Load(BTU)
GLS30501: Total: 56,000
C: 21,000 LF/LR: 13,000 RR: 3,000 RF: 6,000
GLS36502: Total: 57,000
C: 22,000 LF/RF: 13,000 RR: 3,000 LR: 6,000
Energy Source
Gas
Installation Type
Built-In
Commercial/Residential
Residential
Type of Grate
Continuous
Propane (LP) Convertible
Yes
Propane Conversion Kit Included
Yes
Power Supply
120V / 60 Hz
Burner Sealness
Sealed Burners
Safety Device for Gas
Yes
Safety Device/Ignition Type
Flame Failure Device / Fast ignition
Location of Gas Connection
Bottom
Product specifications 1
Product specifications 2
Product specifications 1
Product specifications 2
Gas Type
NG/LPG
Heating Load(BTU)
GLS30501: Total: 56,000
C: 21,000 LF/LR: 13,000 RR: 3,000 RF: 6,000
GLS36502: Total: 57,000
C: 22,000 LF/RF: 13,000 RR: 3,000 LR: 6,000
Energy Source
Gas
Installation Type
Built-In
Commercial/Residential
Residential
Type of Grate
Continuous
Propane (LP) Convertible
Yes
Propane Conversion Kit Included
Yes
Power Supply
120V / 60 Hz
Burner Sealness
Sealed Burners
Safety Device for Gas
Yes
Safety Device/Ignition Type
Flame Failure Device / Fast ignition
Location of Gas Connection
Bottom

User Manual & Downloads

FEATURES
SPECIFICATIONS
MANUAL & DOWNLOADS
REVIEWS
SUPPORT

Versatile Center Burner, Up to 22,000 BTU

The Tri-Ring Burner is exceptionally versatile, with three concentric burner rings capable of producing between 2,500 BTU to 22,000* BTU of heat. Ignite the smallest center ring for low heat dishes, or use the middle and outer rings to produce more heat. To adjust all three rings simultaneously, turn the knob counterclockwise. To turn each ring on or off, turn the knob clockwise.

*GLS30501: 21,000 BTU
*GLS36502: 22,000 BTU

When used synchronously, the Tri-Ring Burner delivers heat more evenly than two-ring designs, helping to ensure your food is cooked evenly and completely. This precision temperature control is perfect for employing many different cooking techniques and preparing a variety of cuisines.

Edge to Edge Cooking Grates

With the tri-ring burner, the cast iron cooking grates extend from edge to edge, maximizing the total cooking area. You’ll have no trouble finding space for pots and pans of all shapes and sizes, making cooking easier and more efficient.

These continuous edge-to-edge grates also make cooking safer by enabling you to easily move hot, heavy pots from one burner to another. Cast iron is also strong and durable, providing you with a versatile cooktop that will last.

Edge to Edge Cooking Grates

We use Cast Iron cooking grates that run from edge to edge on the cooktop. This means, you will always have space to put small and large pots and pans no matter what size or shape they are. It also allows you to move a hot heavy pot easily and safely from one burner to another if you need to. Continuous edge to edge grates makes it easier to cook on your cooktop surface. Cast Iron grates also offer long lasting performance.

Easy to Clean

FOTILE’s Tri-Ring gas cooktop features sealed burners to prevent liquids from spilling into the burner box. The area around the burners is a single, smooth, solid surface with beveled inner edges, making it easy to wipe clean. The burner caps, cast iron cooking grate, and burner knobs are all removable. Simply hand wash them in soap and water and place them back on the cooktop when dry.

Additional Tri-Ring Burner Features

In addition to precision temperature control, convenient edge-to-edge grates, and an easy-to-clean design, our tri-ring gas cooktop has several professional-grade features that make it safer and easier to use.

Both seasoned cooks and beginners will benefit from our cooktop’s sleek and versatile design.

Cook Top Seamless Mounting

Seamless Mounting

We designed this tri-ring burner with professional-grade stainless steel hardware and a low profile to integrate seamlessly into your countertop. Its classic lines will blend into any decor, from modern to traditional.

Flame Failure Detection

Flame Failure Detection

One of the Tri-Ring cooktop’s many safety features is flame failure detection. If your burner fails to ignite or the flame goes out, the Flame Failure Device cuts off the gas supply within 20 seconds, keeping your home and family safe.

Fast Ignition System

Fast Ignition System

To activate Tri-Ring Cooktop’s Fast Ignition System, simply press, turn, and release the knob. The flame will light in 3 seconds or less because, rather than cutting off power when the knob is released, the solenoid valve continues to feed energy to the ignition needle. This design increases ignition success rate and extends the life of the igniter inside each burner.

Simmer Burner

Simmer Burner

The dedicated simmer burner provides just 3,000 BTU of heat—the perfect amount for melting butter or coconut oil, warming chocolate sauce, or slowly reducing and thickening jam. The heat remains low, accurate, and consistent to help you flawlessly execute these and other delicate dishes.

Griddle Burners

Griddle Burners*

This professional-grade cooktop’s two left burners deliver even, consistent heat to large griddle pans. Both gas burners produce 13,000 BTU of medium heat, ideal for preparing a variety of breakfast foods, grilled sandwiches, sautéd vegetables, fish filets, and steaks.

*Compatible with Model GLS30501

Heating Efficiency

Heating Efficiency

The Tri-Ring burners and burner covers are also made of pure copper, which is not only beautiful but also durable and thermodynamically efficient. Copper conducts heat better than other common burner materials like aluminum-alloyed cast iron.

In fact, this cooktop heats so efficiently that it can save you 77 hours each year when cooking for a family of three.

Tri-Ring Gas Cooktop Specifications

ModelGLS30501GLS36502
CertificationETL, ISTA-3ACSA, ISTA-3A
Product Dimensions
(WxDxH)(inch)		30" x 21" x 5 1/4"
36" x 21" x 6"
Build-in Size
(WxDxH)(inch)
28 1/4" x 19 1/4" x 3 3/8"33 5/8" x 18 7/8" x 4 3/16"
Cut-Out Dimension (WxD)(inch)
Min 28 1/2" – Max 29" x Min 19 5/8" – Max 20 1/8"Min 33 7/8" - Max 35" x Min 19 1/8" - Max 20 1/2"
Packing-Box Size (WxDxH)(inch)
34 5/16" x 25 1/4" x 9 11/16"
40" x 25 3/16"  x 11 13/16"
No. of Burner
5
5
Color of Frame / SurfaceStainless SteelStainless Steel
Grate MaterialCast IronCast Iron
Burner MaterialAluminum, BrassAluminum, Brass
Knob MaterialZinc alloy, NylonZinc alloy, Nylon
USER MANUAL

USER MANUAL

GLS30501 DOWNLOADGLS36502 DOWNLOAD
SPEC SHEET

SPEC SHEET

DOWNLOAD
installation guide

installation guide

GLS30501 DownloadGLS36502 Download
brochure

brochure

DOWNLOAD
3D Design File

3D Design File

DOWNLOAD
ACCESSORIES Lists

ACCESSORIES Lists

DOWNLOAD
Griddle Guide

Griddle Guide

DOWNLOAD
Warranty Document

Warranty Document

DOWNLOAD
schedule service

schedule
service

Troubleshooting

Troubleshooting

PRODUCT WARRANTIES & REGISTRATION

PRODUCT WARRANTIES & REGISTRATION

ASK A QUESTION

ASK A
QUESTION

FOTILE WARRANTY POLICY FOR GAS COOKTOP PURCHASES

FOTILE is offering (from the date of purchase) five years limited warranty on Gas Cooktop products. ONE (1) YEARS FULL WARRANTY ON ALL FOTILE GAS COOKTOP LABOR AND PARTS, AND FOUR(4) YEARS LIMITED WARRANTY ON ALL PARTS OF FOTILE GAS COOKTOP PRODUCTS*

YOU MAY ALSO NEED

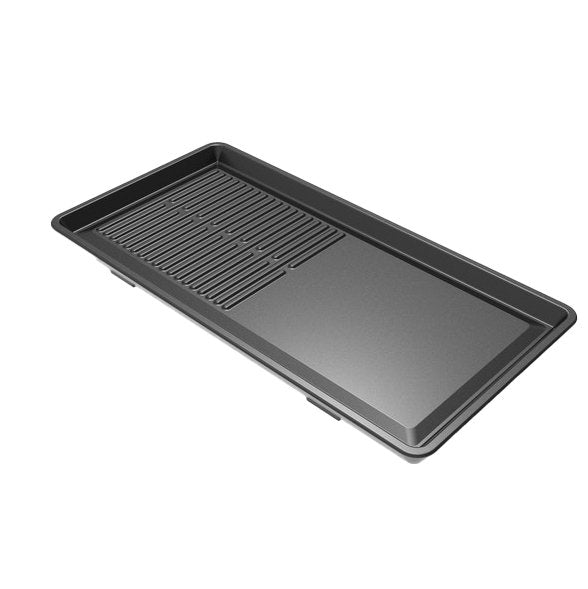

FOTILE two-burner reversible griddle for GLS30501 gas cooktop
FOTILE two-burner reversible griddle for GLS30501 gas cooktop

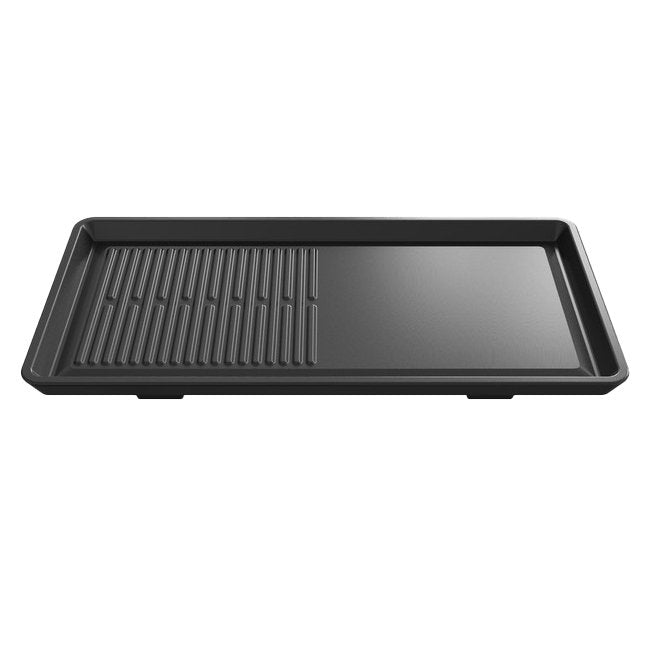

FOTILE two-burner reversible griddle for GLS30501 gas cooktop, view 2

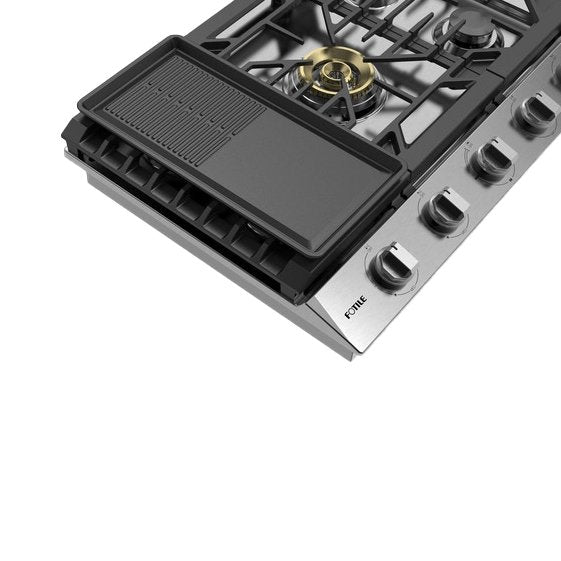

FOTILE two-burner reversible griddle for GLS30501 gas cooktop, view 3
