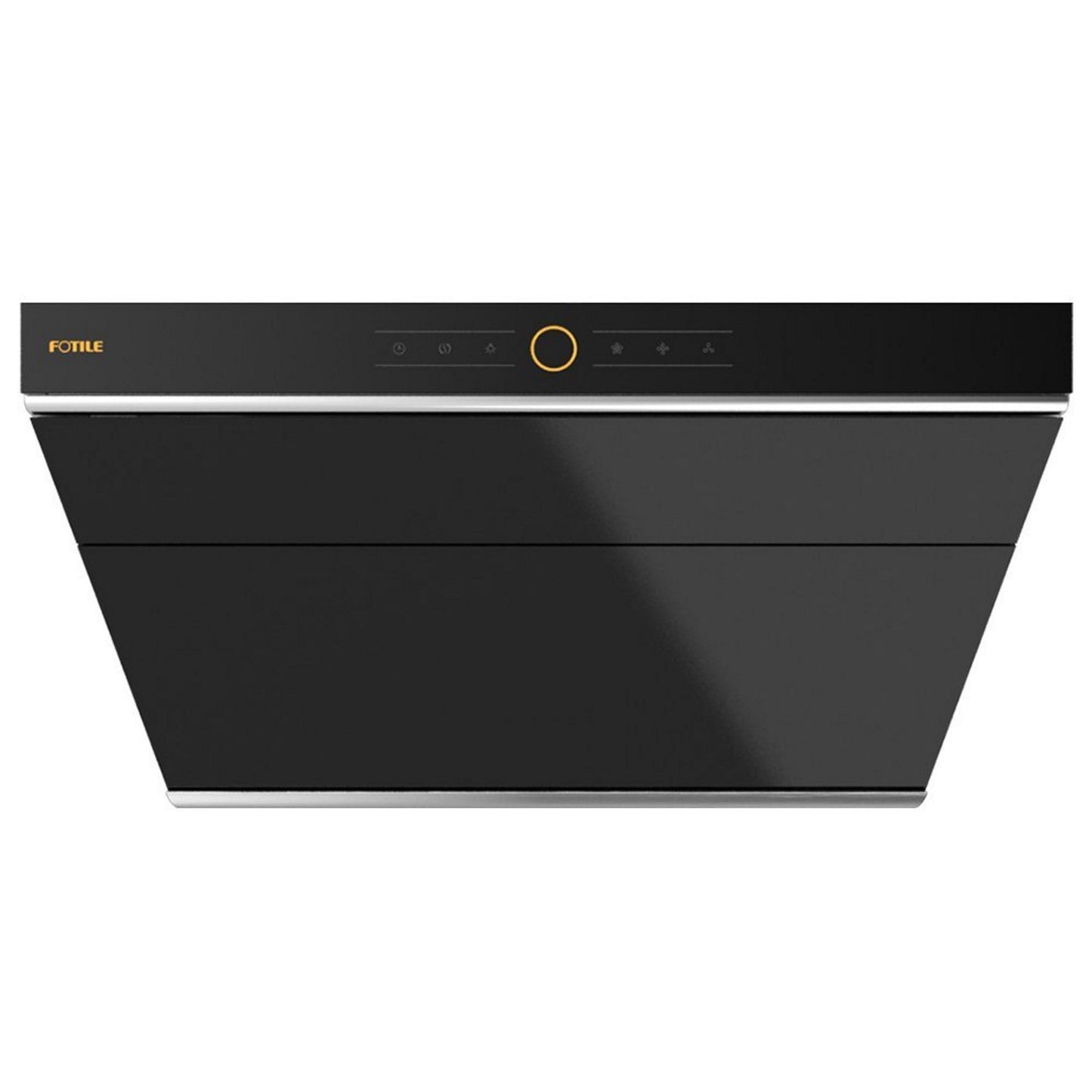

  • Top View of Black FOTILE JQG9001 Range Hood

JQG7501

Under-Cabinet / Wall Mount Classic Series

284 reviews 92% recommend

  • Mounts to the wall as a fixed focal point
  • Encircles smoke from every edge
  • Prevents grease & odors from drifting
  • Clears the air quietly, powerfully, & efficiently
$899.00 USD
$1,199.00 USD $899.00 USD
25% OFF
Shipping calculated at checkout.
Size

Why you'll love it

30 / 36 in. 850 CFM Under Cabinet / Wall Mount Range Hood w/ Touchscreen

  • 30"/36" wall-mount/under-cabinet range hood
  • Black tempered glass
  • Max EQUIV. CFM: 850*
  • 39dB Min. Noise Level
  • Inclined design for exhaust extraction
  • Close proximity to cooking surface and smoke
  • 90° Automatic Open Capture Shield
  • 30" Inclined Vent Covers 6ft² of Cooking Area (4-5 Burners)
  • 36" Inclined Vent Covers 7.2ft² of Cooking Area (5-6 Burners)
  • Dual AC Motors
  • 2-Min Delay shutoff
  • 95% Grease Separation Rate 98% Odor Elimination Rate

*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

Why you'll love it

30 / 36 in. 850 CFM Under Cabinet / Wall Mount Range Hood w/ Touchscreen

  • 30"/36" wall-mount/under-cabinet range hood
  • Black tempered glass
  • Max EQUIV. CFM: 850*
  • 39dB Min. Noise Level
  • Inclined design for exhaust extraction
  • Close proximity to cooking surface and smoke
  • 90° Automatic Open Capture Shield
  • 30" Inclined Vent Covers 6ft² of Cooking Area (4-5 Burners)
  • 36" Inclined Vent Covers 7.2ft² of Cooking Area (5-6 Burners)
  • Dual AC Motors
  • 2-Min Delay shutoff
  • 95% Grease Separation Rate 98% Odor Elimination Rate

*Please note: The actual product color may vary slightly from the images shown due to differences in lighting, screen settings, and product finishes.

  • Dual AC Motors

  • Screen Lock Function

  • O-touch Control

  • Bright LED Lights

  • Delay Shutoff

  • 3 Speed Settings

  • Auto 90° Capture Shield

  • Easy cleaning

Feature 01 / 03

WhisPower System

Due to our WhisPower Technology, FOTILE’s Classic Series range hood is able to capture a higher CFM than actually published by achieving the Venturi effect created with our Capture Shield Technology. Air speed and power are increased as we capture smoke and grease in the Golden Collection Zone and pass it through our centrifugal WhisPower motors.

Extra-wide Fume Inlet ensures even suction pressure at every angle

Feature 02 / 03

Extra-wide Fume Inlet ensures even suction pressure at every angle

90-degree Auto Open Fume Capture Shield prevents the smoke from spreading effectively and protects you against harm.

Feature 03 / 03

Super-large Coverage Area easily covers all the burners on your cooktop

Extra-wide Fume Inlet ensures even suction pressure and airflow at every angle. Super-large Coverage Area easily covers all the burners on your cooktop.

  • Double Centrifugal Fans ensure strong power and fluent extraction.

  • Super Quiet Operation: Lowest Speed has 39dB noise level; Mid Speed has 49.2dB; High Speed has 54.3dB.

  • Screen Lock Function allows you to clean your Range Hood without accidentally turning it on.

  • A Delay Function lets the Classic Slant Vent Series range hood work for several minutes after cooking to ensure all the smoke and odor are removed from your kitchen.

  • Powerful Lights light up the whole cooking area and help you see the color of the food you are cooking.

  • Large Grease Tray with more volume decreases the frequency of cleaning. Folding Oil Filter is dishwasher safe.

Specifications & Product Details

Certification
ETL, HVI, CEC
Product Dimensions
(WxDxH)(inch)
JQG7501:
29 7/8" x 18 7/16" x 17 7/16"
JQG9001:
35 7/8" x 18 7/16" x 17 7/16"
Power Supply
120V/60HZ
Max Static Pressure(Pa)
400Pa
Speed Setting
3
Duct Size(inch)
6" Round (Top Vented)
Max. EQUIV.CFM
850*
CFM(HVI)
230 / 400 / 520
Noise Level(sones)
1.2 / 4 / 6
Noise Level(dB)
39 / 49.2 / 54.3
Illumination(W)
3W*2 (LED) 500Lux
Packing-Box Size(WxDxH) (inch)
JQG7501: 33 9/16" x 22 11/16" x 23 7/8"
JQG9001: 43 5/8" × 26 3/4" × 27 3/8"
Motor Power
256W
Product specifications 1
Product specifications 2
Product specifications 3
Product specifications 4
Product specifications 1
Product specifications 2
Product specifications 3
Product specifications 4
Certification
ETL, HVI, CEC
Product Dimensions
(WxDxH)(inch)
JQG7501:
29 7/8" x 18 7/16" x 17 7/16"
JQG9001:
35 7/8" x 18 7/16" x 17 7/16"
Power Supply
120V/60HZ
Max Static Pressure(Pa)
400Pa
Speed Setting
3
Duct Size(inch)
6" Round (Top Vented)
Max. EQUIV.CFM
850*
CFM(HVI)
230 / 400 / 520
Noise Level(sones)
1.2 / 4 / 6
Noise Level(dB)
39 / 49.2 / 54.3
Illumination(W)
3W*2 (LED) 500Lux
Packing-Box Size(WxDxH) (inch)
JQG7501: 33 9/16" x 22 11/16" x 23 7/8"
JQG9001: 43 5/8" × 26 3/4" × 27 3/8"
Motor Power
256W
